Hardware Assembly

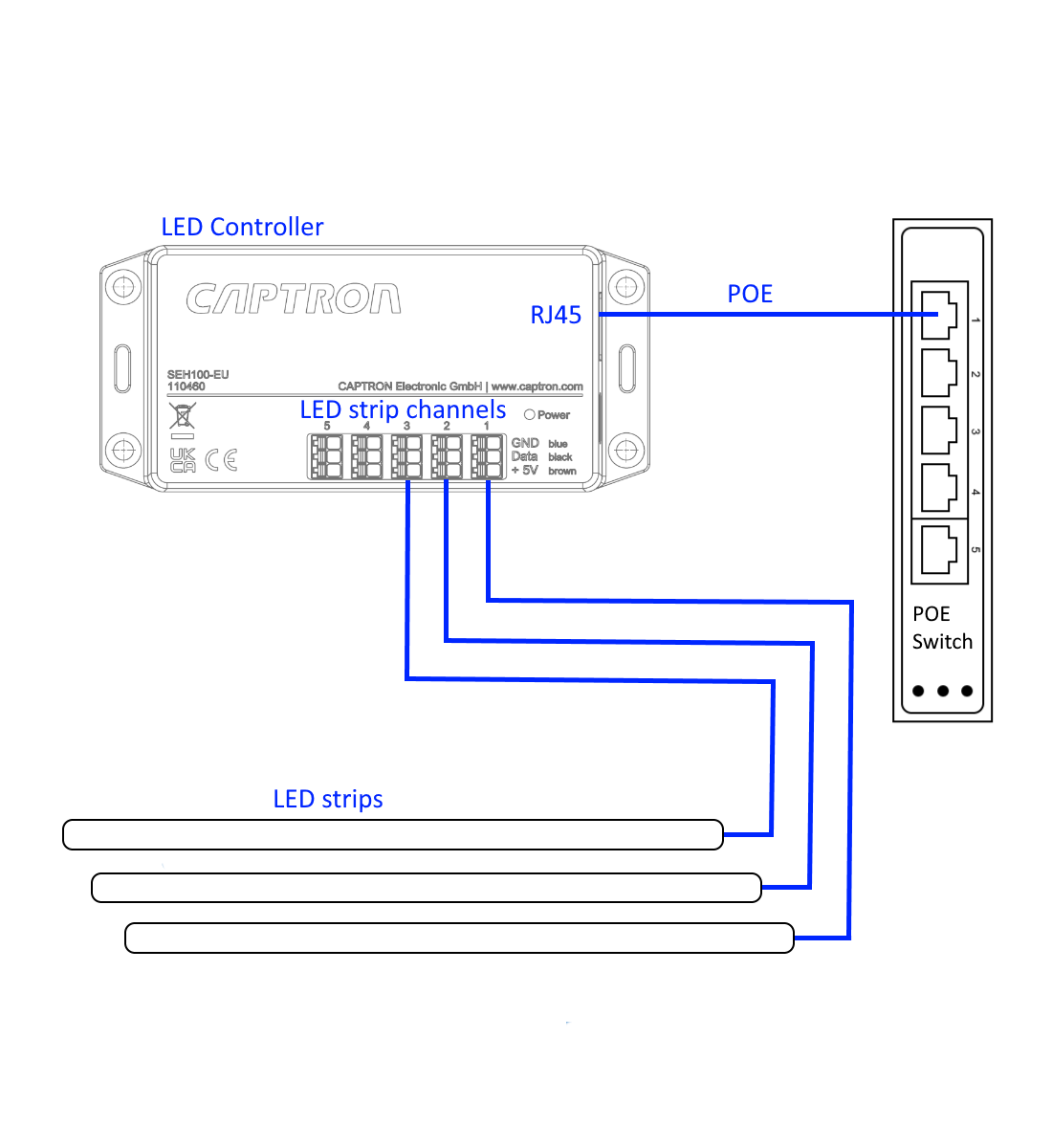

The cable connections between all parts of the system are shown in the schematic below.

Wiring schematic of the SENSORhub SEH controller with LED strips connected to the LED strip channels and a PoE switch connected to the RJ45 port

Each LED strip connects to one of the LED strip channels (outputs 1–5). The strip conductors are: GND (blue), Data (black) and +5V (brown).

Power Supply

Power can be supplied through PoE or USB. The internal PoE converter is limited to 4 W.

Typical consumption:

Component	Power consumption
Controller	1 W
Lit LED strip	3 W per meter
SMC button (SENSORswitch)	0.8 W each

note

When using 4 m or 5 m LED strips and/or more than 2 SMC buttons, it is recommended to use USB or an external PoE splitter with a higher wattage (for example the joy-it SBC-POE-POWER-C with 10 W).
